Crawler Type Concrete Placing Boom

BHD 18Z4

It walks easily thanks to the tracked walking equipment on the paths where mobile concrete boom pumps and transit mixers cannot enter. It easily stays balanced on uneven surfaces and continues concrete delivery without interruption. While other concrete distributors cannot work in projects where height is a problem, this model has the ability to open its booms even at a ceiling height of 4 m. It provides important advantages especially in the projects with low ceiling height, such as tunnel, metro or train stations and parking constructions. Diesel, electric or gasoline engines are optional. Another important advantage it offers is that it can be removed from the crawler undercarriage and used as a standard spider boom if needed.

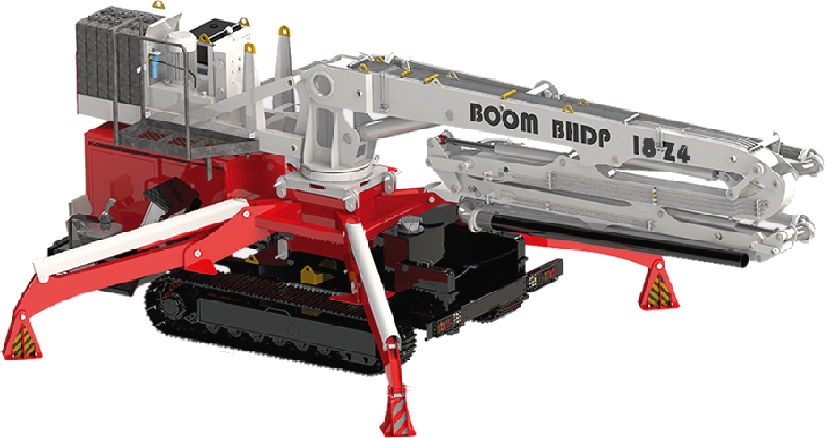

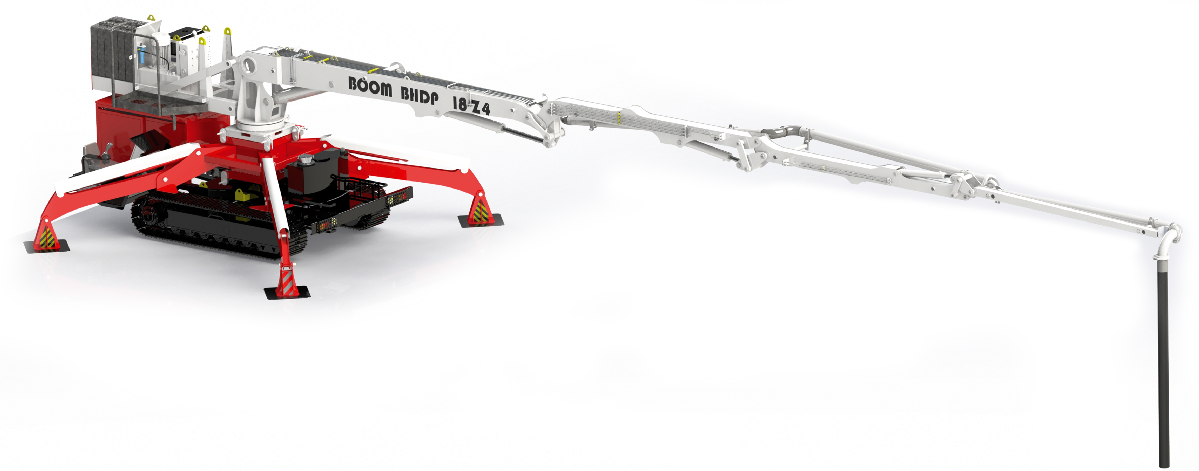

BHDP 18Z4 Machine

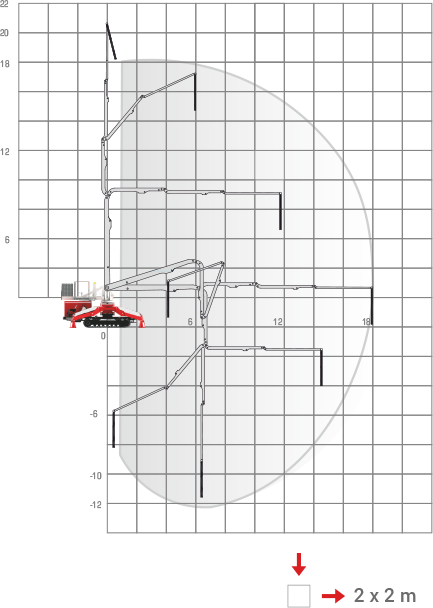

BHDP 18Z4 Scan

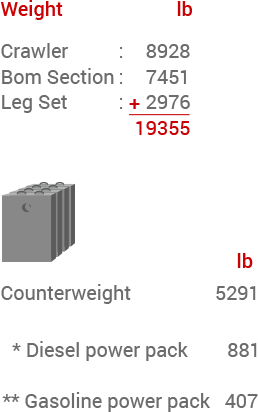

BHDP 18Z4 Weight Information

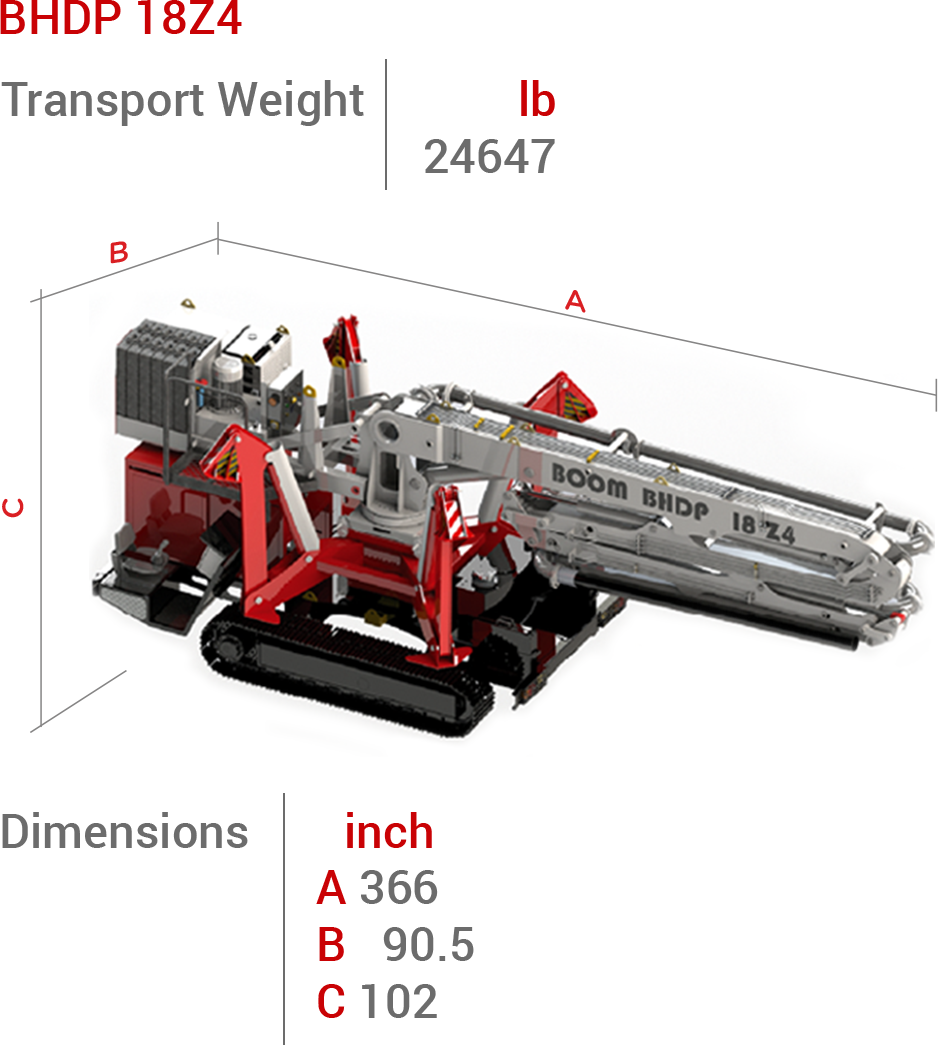

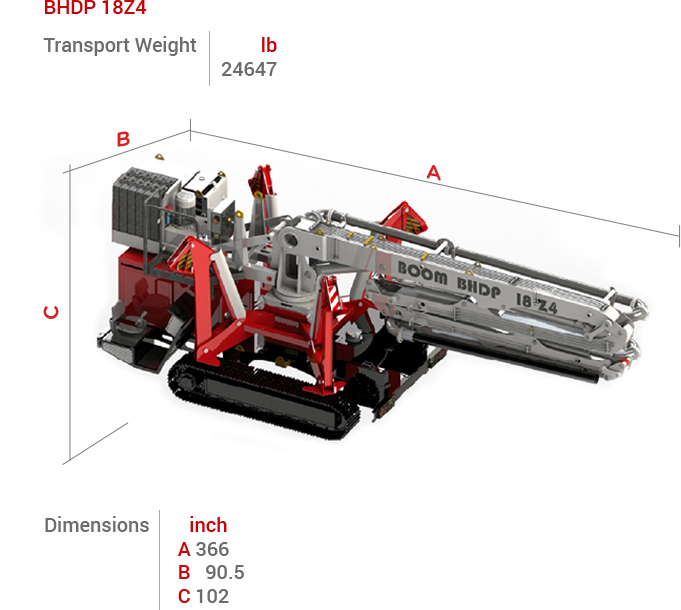

BHDP 18Z4 Closed version BHDP 18Z4 Closed version

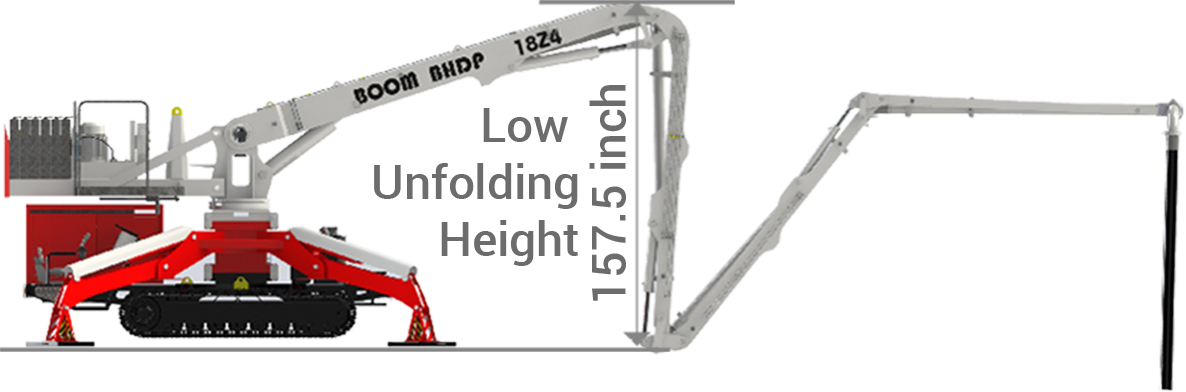

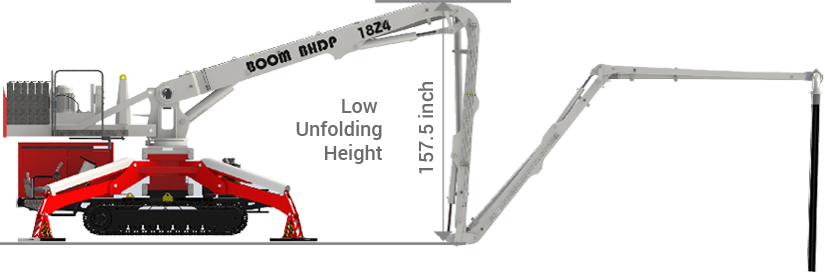

BHDP 18Z4 Maximum Height BHDP 18Z4 Maximum Height
BHDP 18Z4 Maximum Height
BHDP 18Z4 Maximum Height

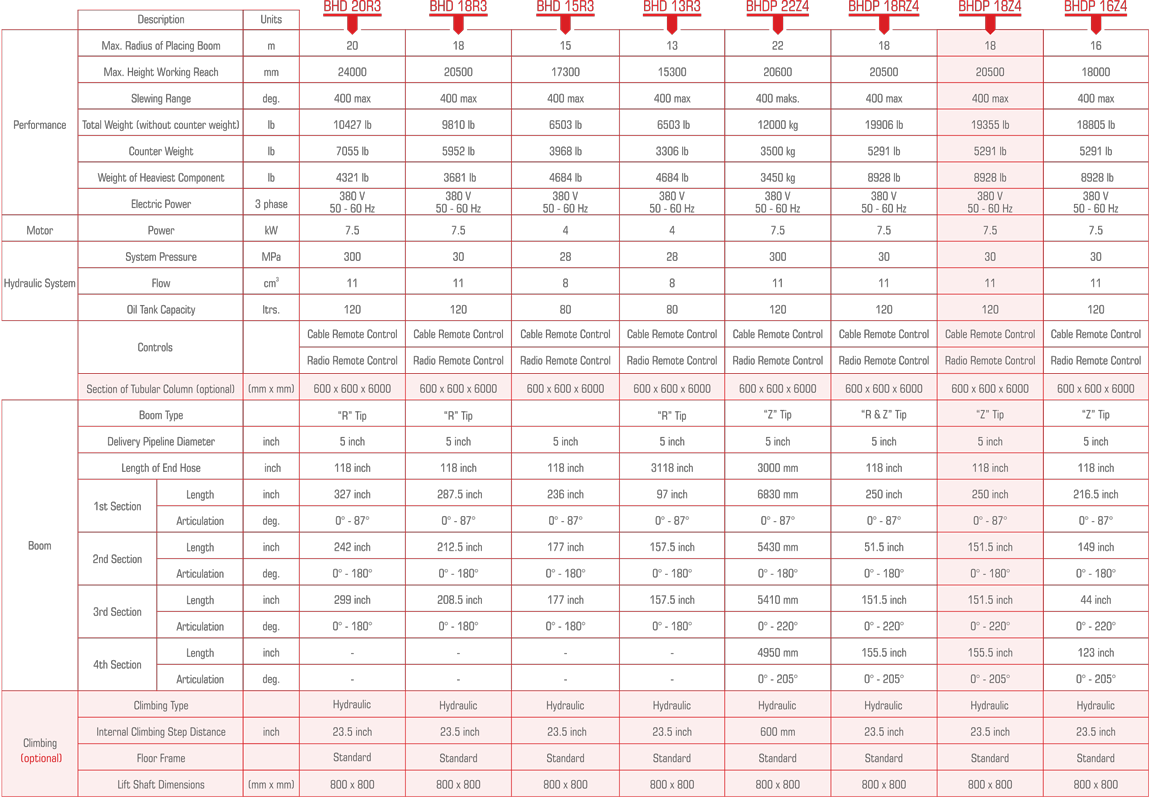

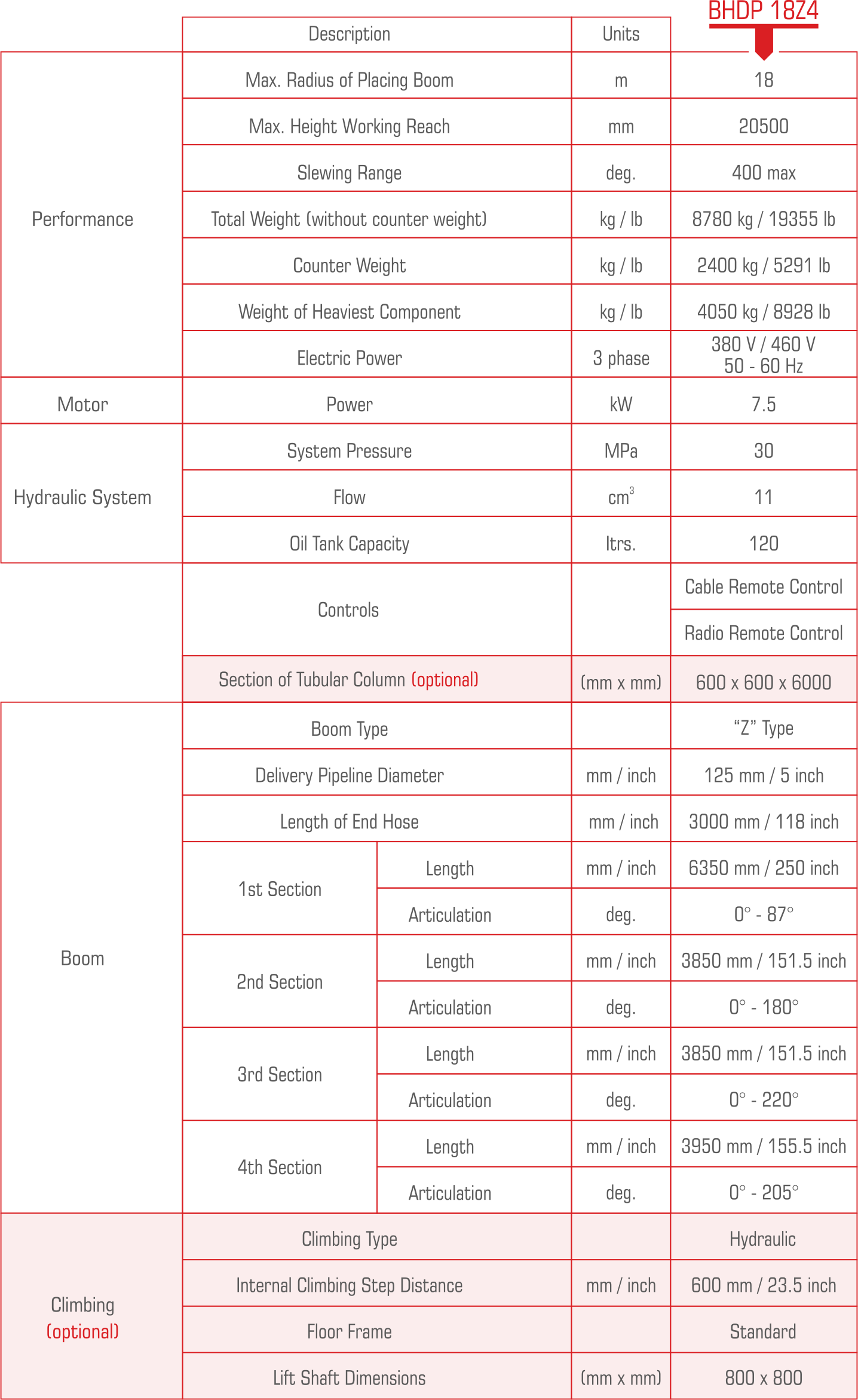

Technical Information

BHDP 18Z4 Technical Information

*The dimensions stated on the page can be changed by the company without additional information!
