Climbing-type concrete placing boom

BHD 36R4

Self-climbing type concrete placing boom, which is mounted in the gaps left on the floors in the building construction, without the help of a tower crane, thanks to the hydraulic system. Tower crane support is required only during installation and dismantling.

BHD 32R4 Machine

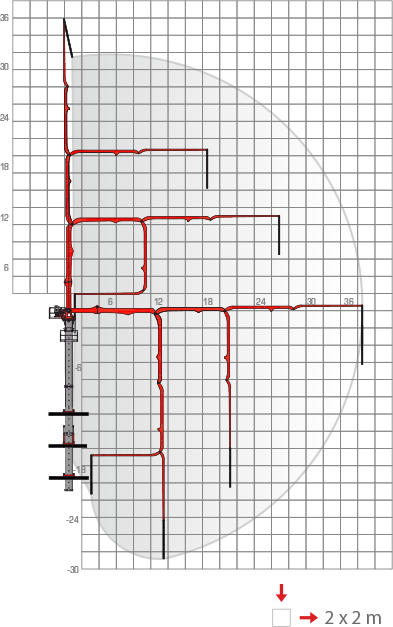

BHD 32R4 Scan
BHD 32R4 Weight Information

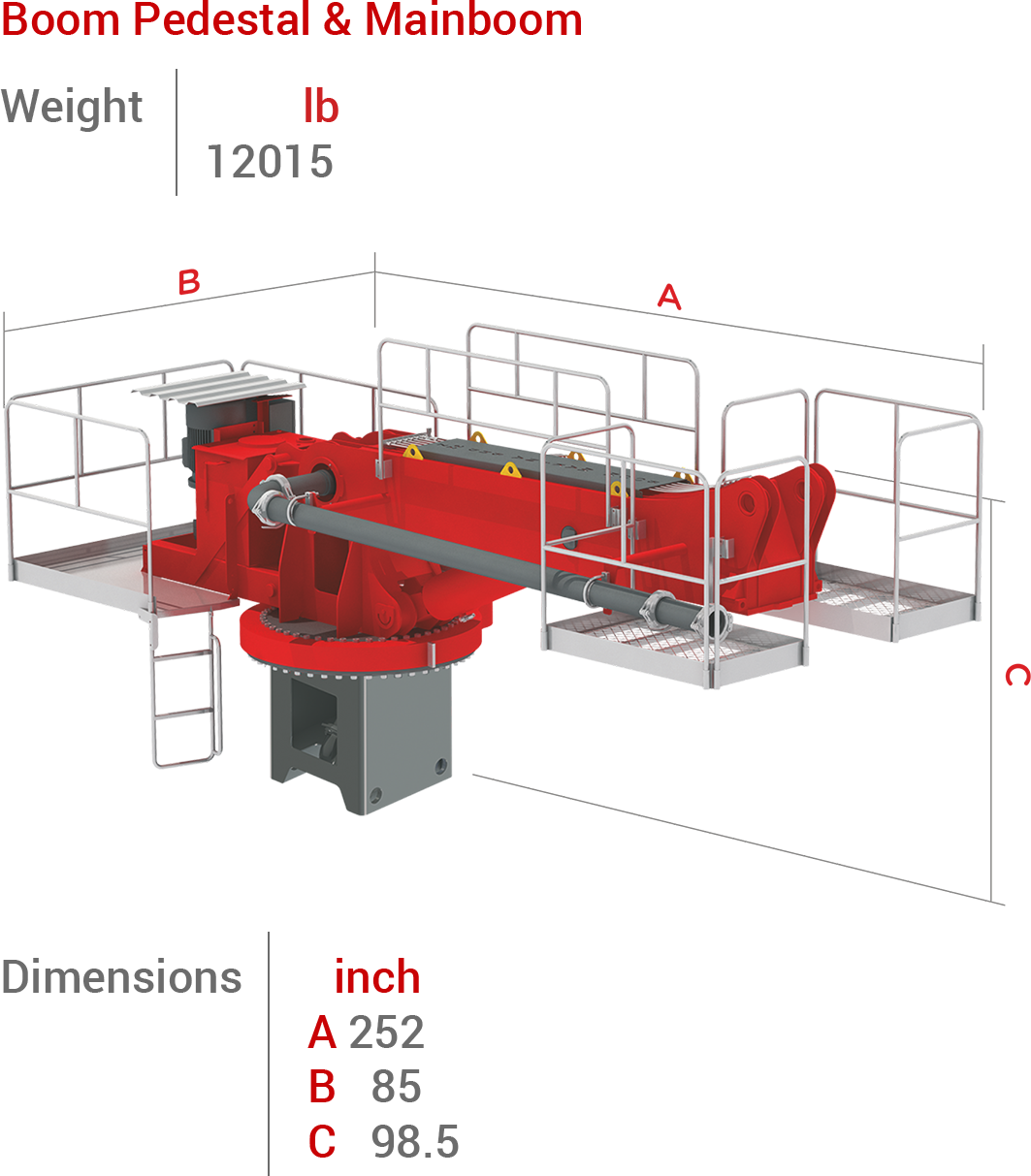

BHD-32R4 Boom, Pedestal ve Mainbom BHD-32R4 Boom, Pedestal ve Mainbom
BHD-32R4 Boom BHD-32R4 Boom

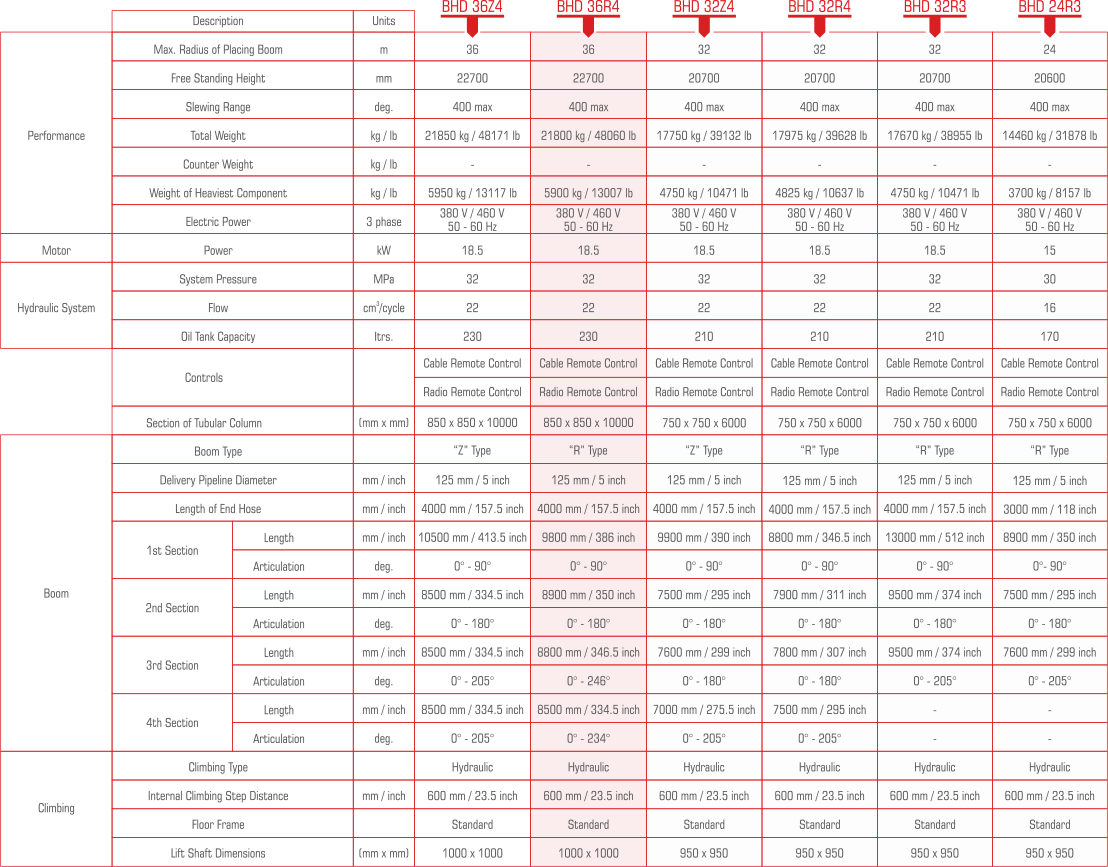

Technical Information

BHD-32R4 Technical Information

*The dimensions stated on the page can be changed by the company without additional information!
