Spider Type Concrete Placing Booms

BHD 20R3

No fixing or mounting on the floor is required. On the slab, it is moved with the help of a tower crane and replaced. Thanks to its practicality, it can be used in concrete distribution at multiple points on the same day. Thanks to its hydraulic arms, concrete can be poured practically on walls, columns and floors.

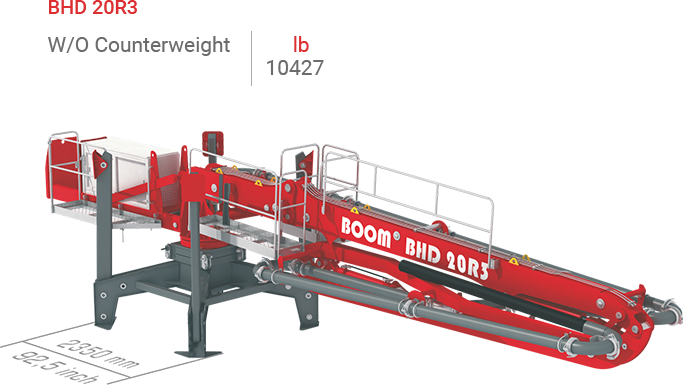

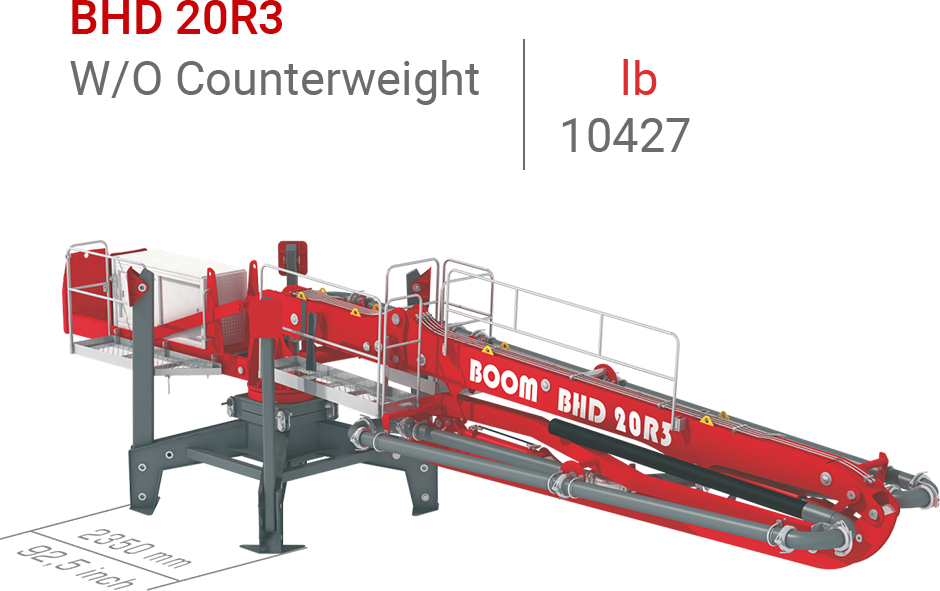

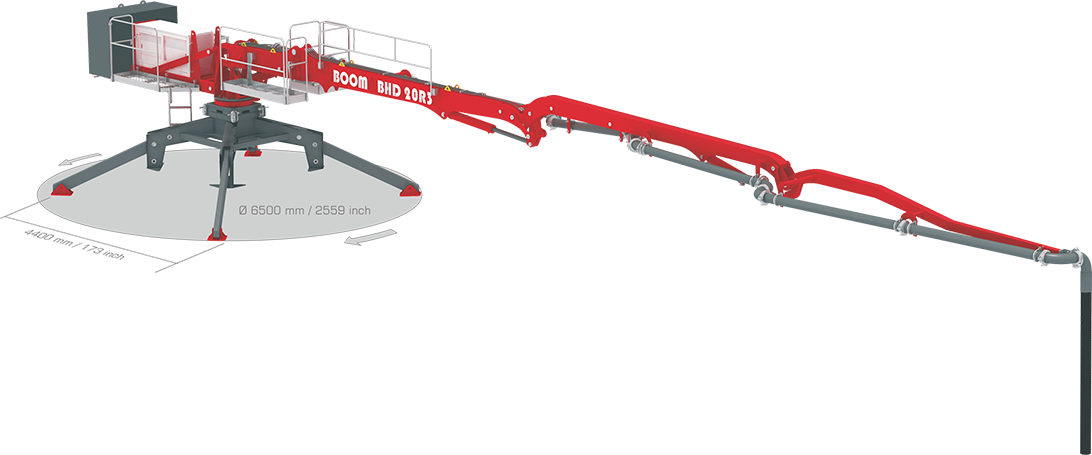

BHD 20R3 Machine

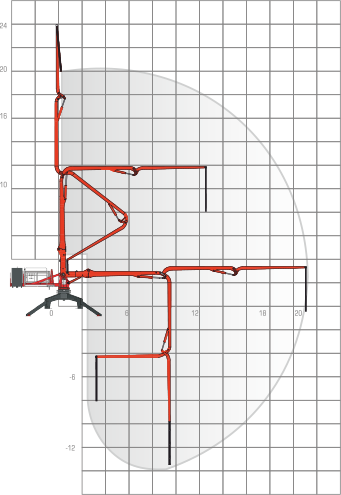

BHD 20R3 Scan

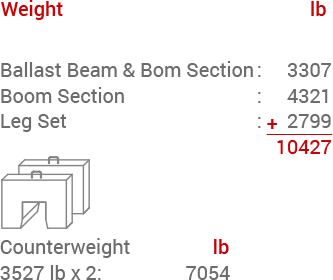

BHD 20R3 Weight Information

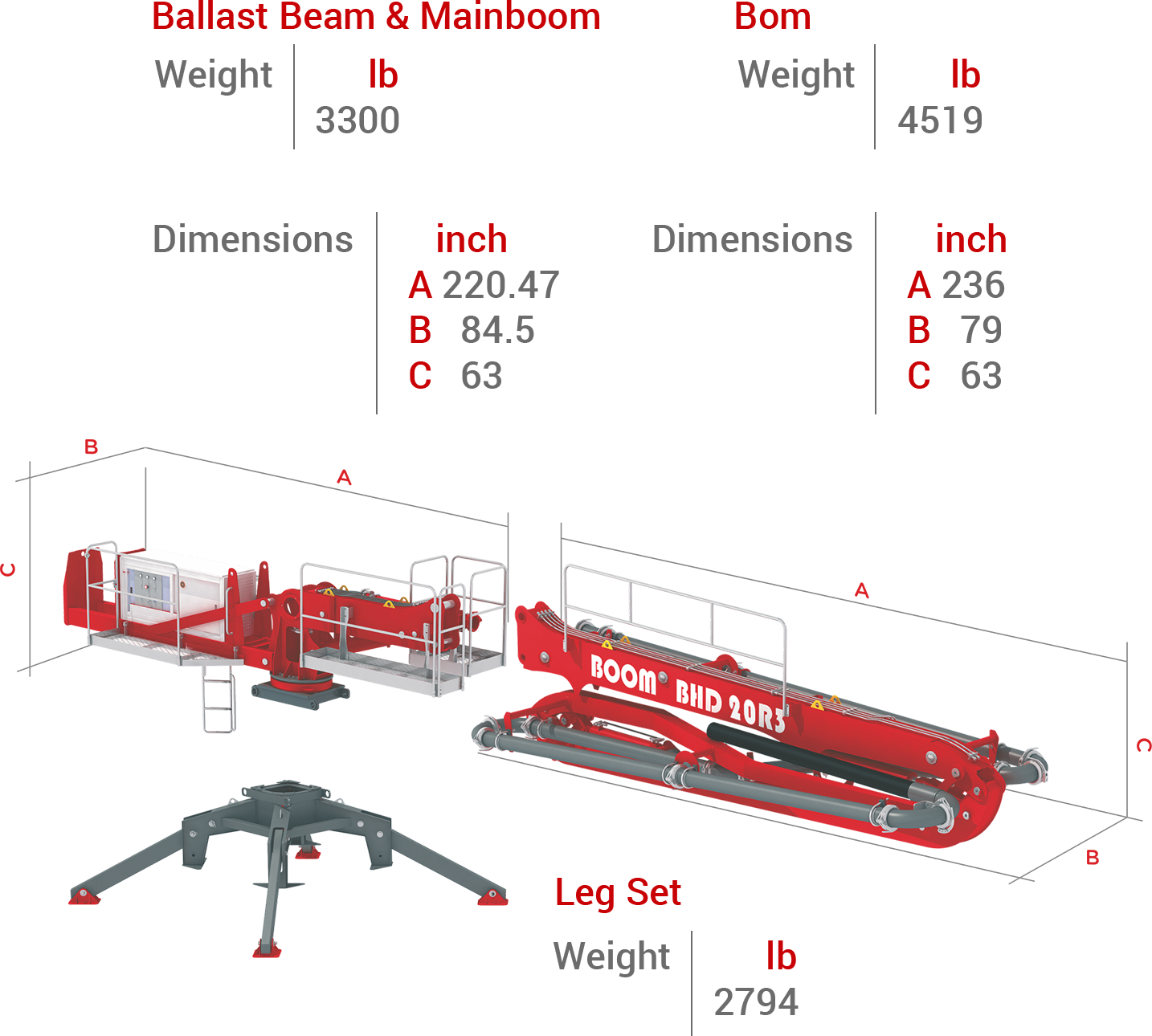

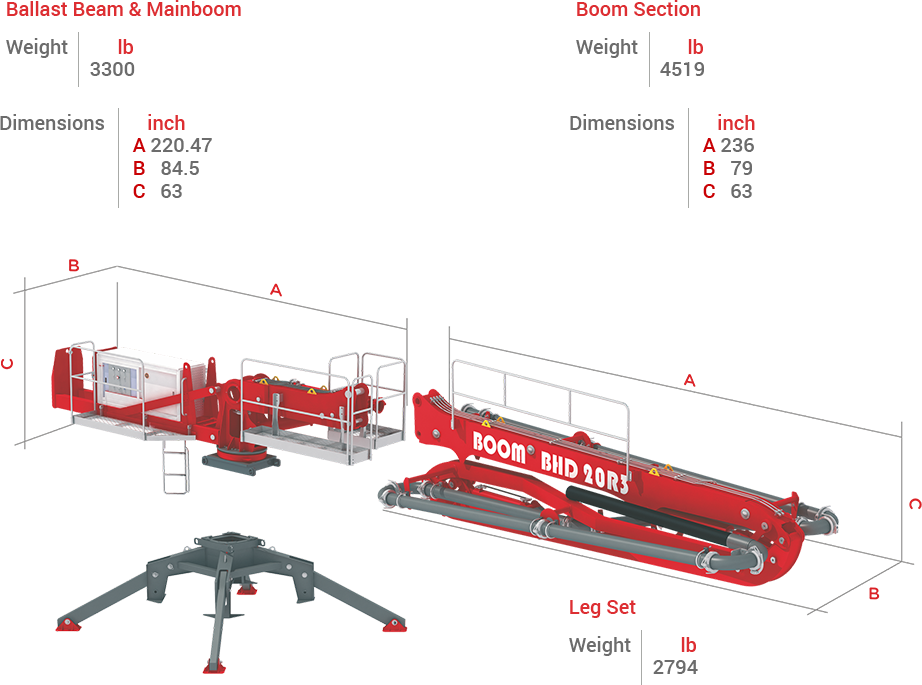

BHD-20R3 Boom, Pedestal ve Mainbom BHD-20R3 Boom, Pedestal ve Mainbom
BHD-20R3 Boom BHD-20R3 Boom

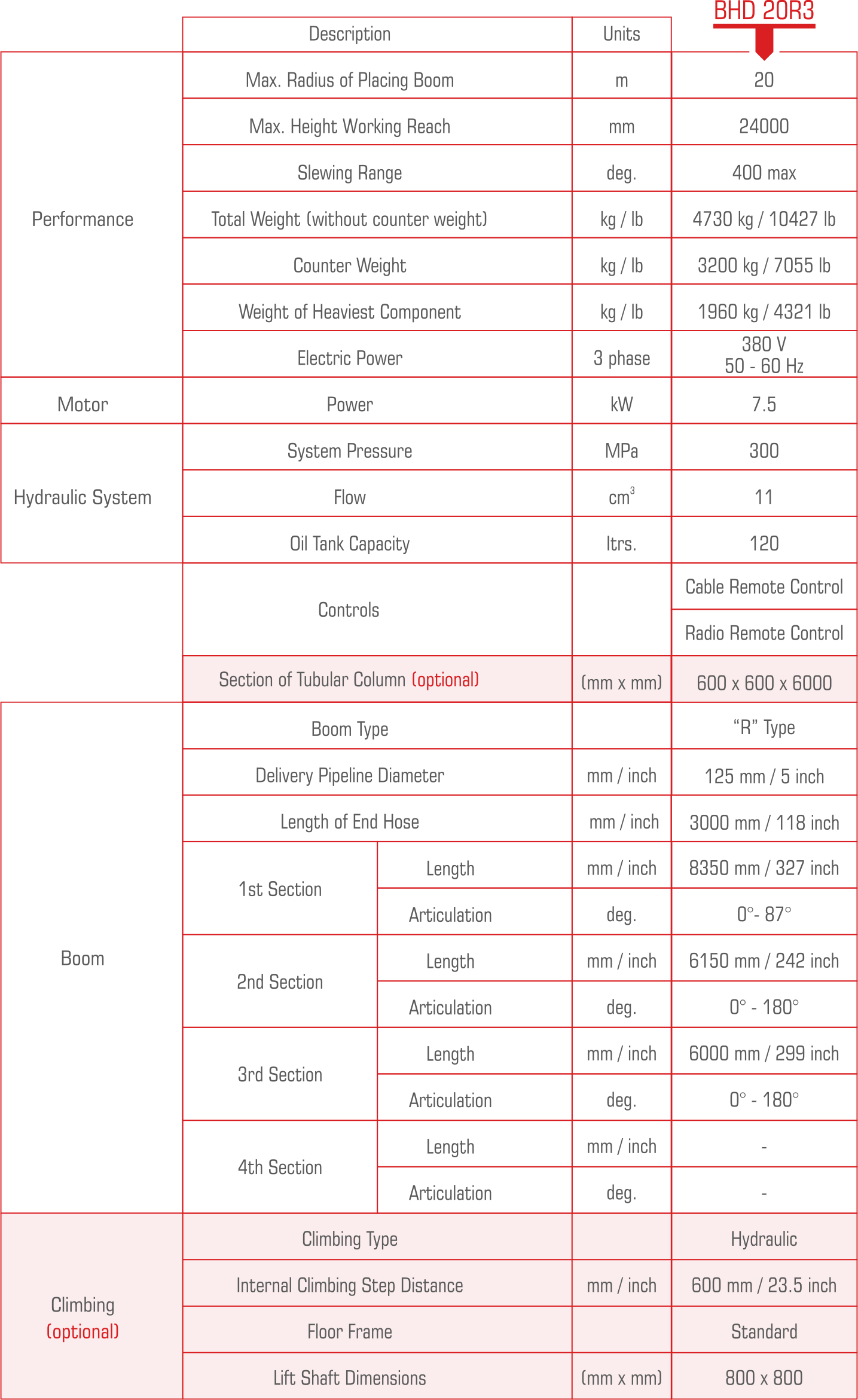

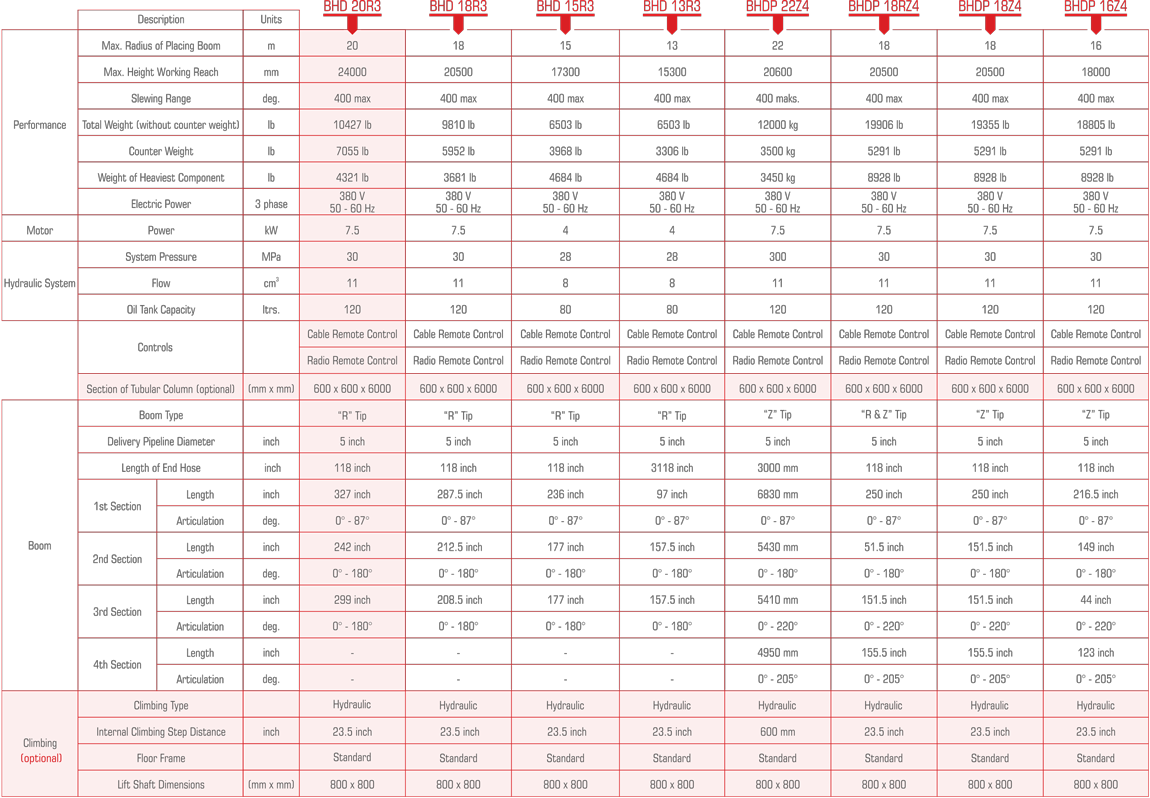

Technical Information

BHD-20R3 Teknik Bilgiler BHD-20R3 Teknik Bilgiler

*The dimensions stated on the page can be changed by the company without additional information!
