Spider Type Concrete Placing Boom

BHD 18R3

No fixing or mounting on the floor is required. On the slab, it is moved with the help of a tower crane and replaced. It can be used in concrete distribution at multiple points on the same day. Thanks to its hydraulic arms, concrete can be poured practically on walls, columns and floors.

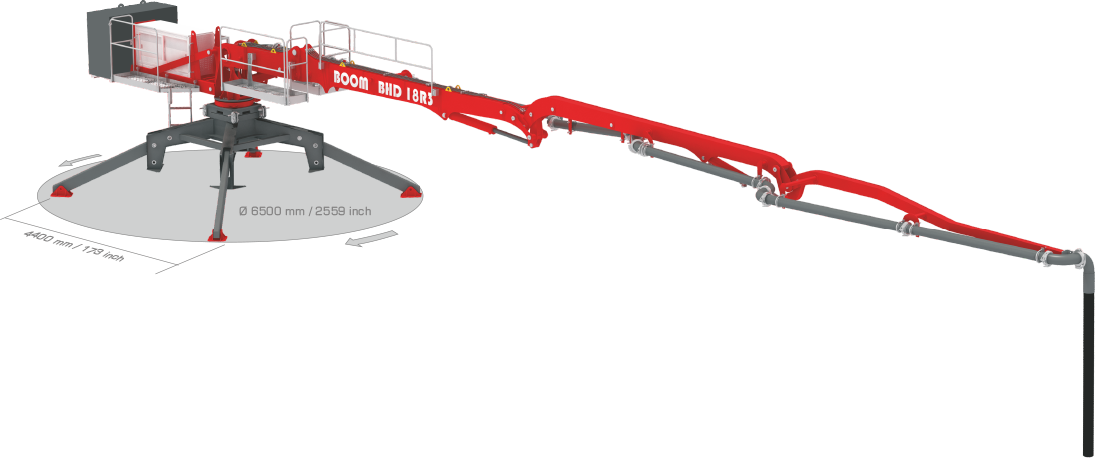

BHD 18R3 Machine

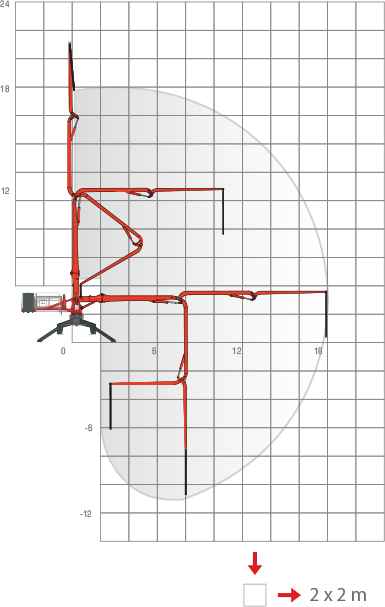

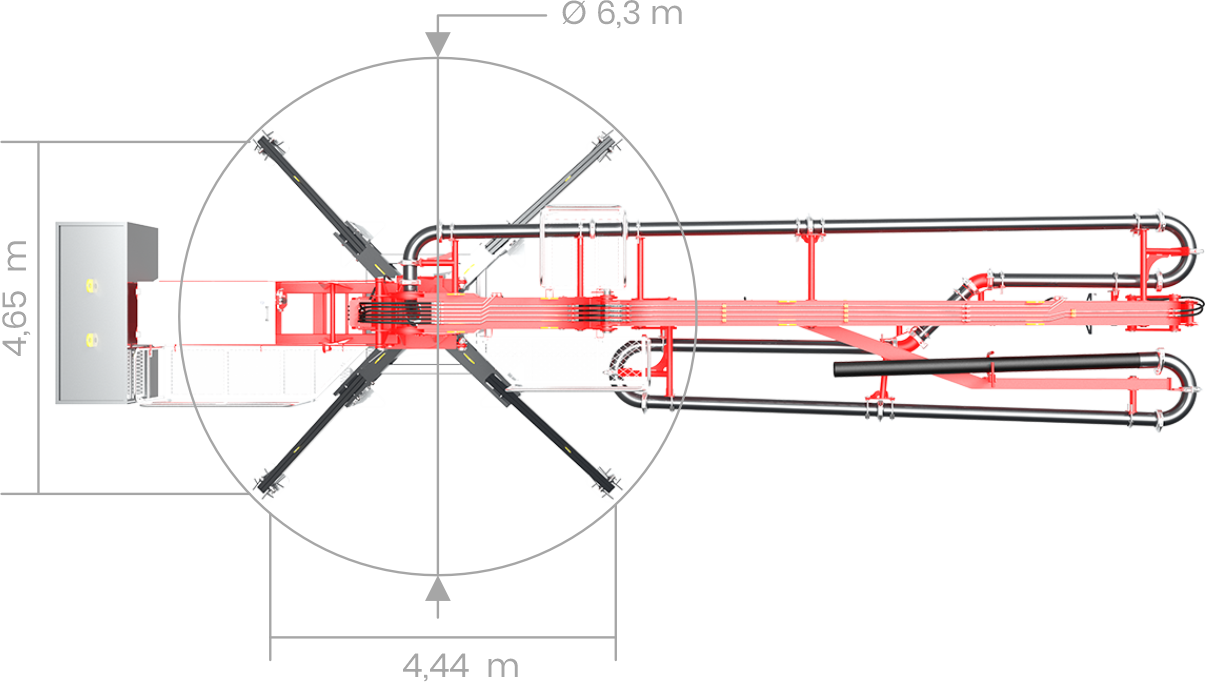

BHD 18R3 Scan

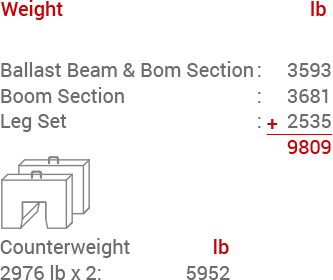

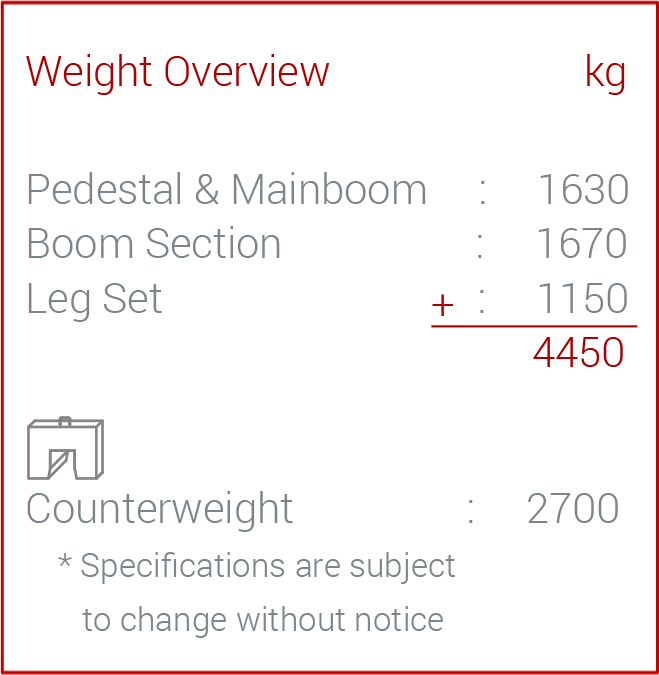

BHD 18R3 Weight Information

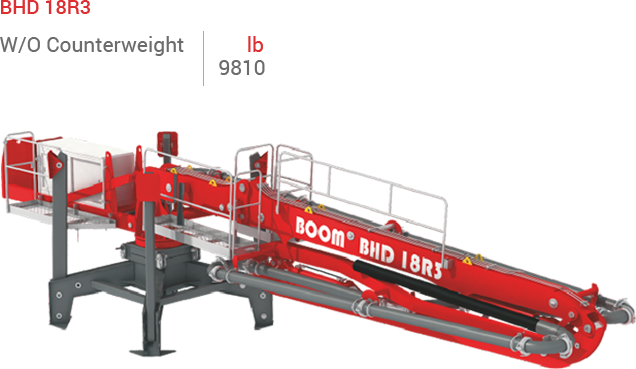

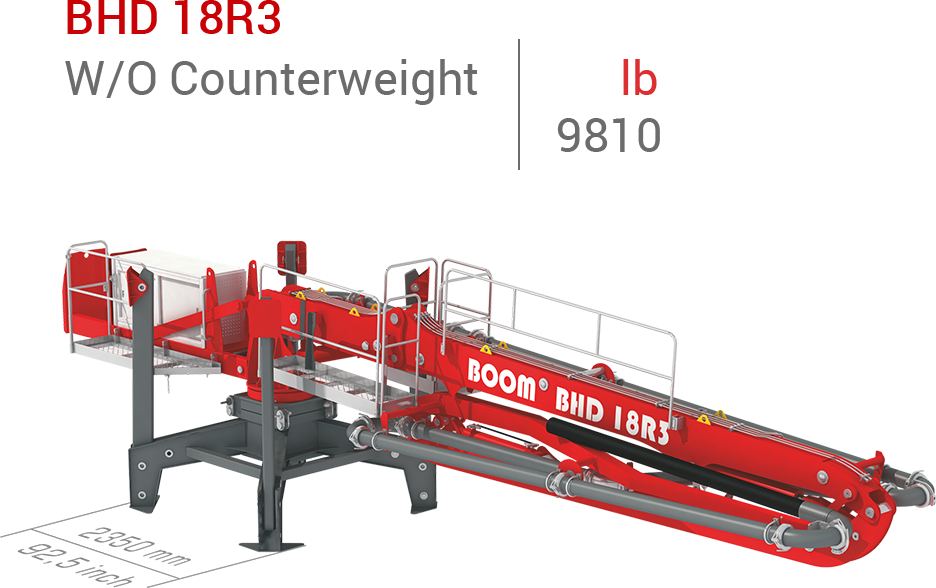

BHD-18R3 Pedestal(Close) BHD-18R3 Pedestal(Close)

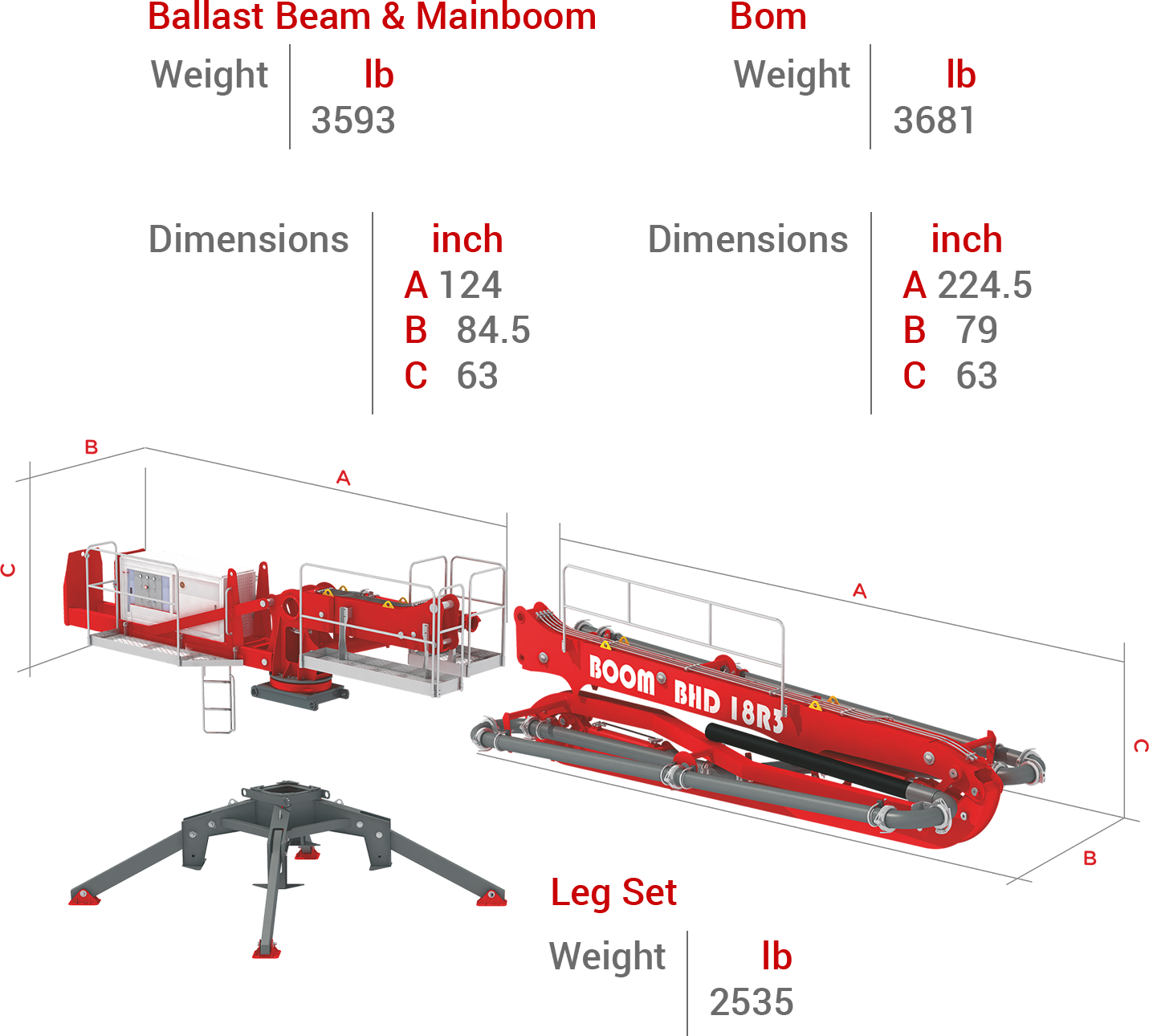

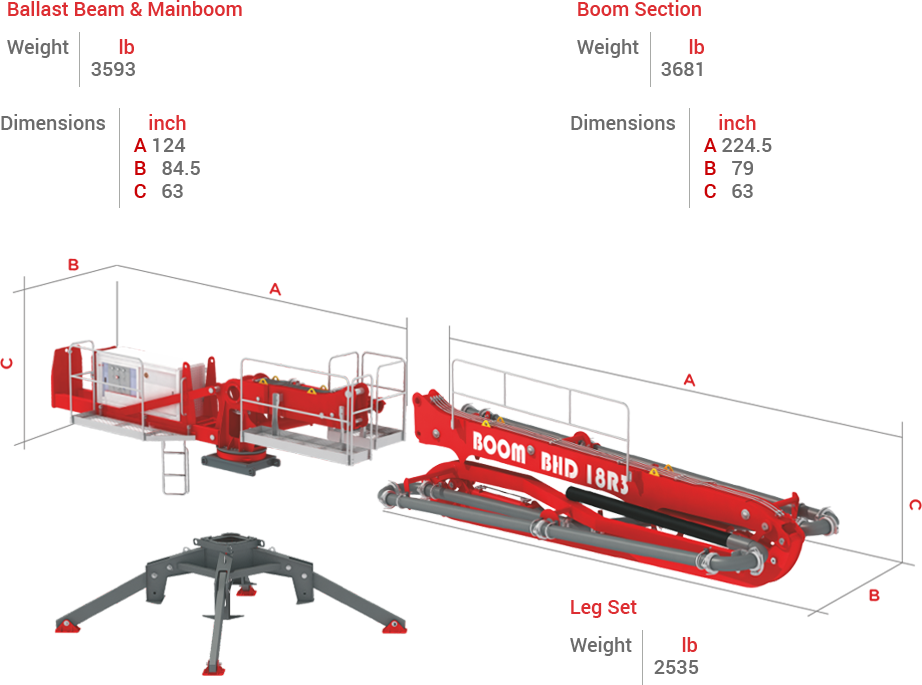

BHD-18R3 Boom, Pedestal ve Mainbom BHD-18R3 Boom, Pedestal ve Mainbom

Technical Information

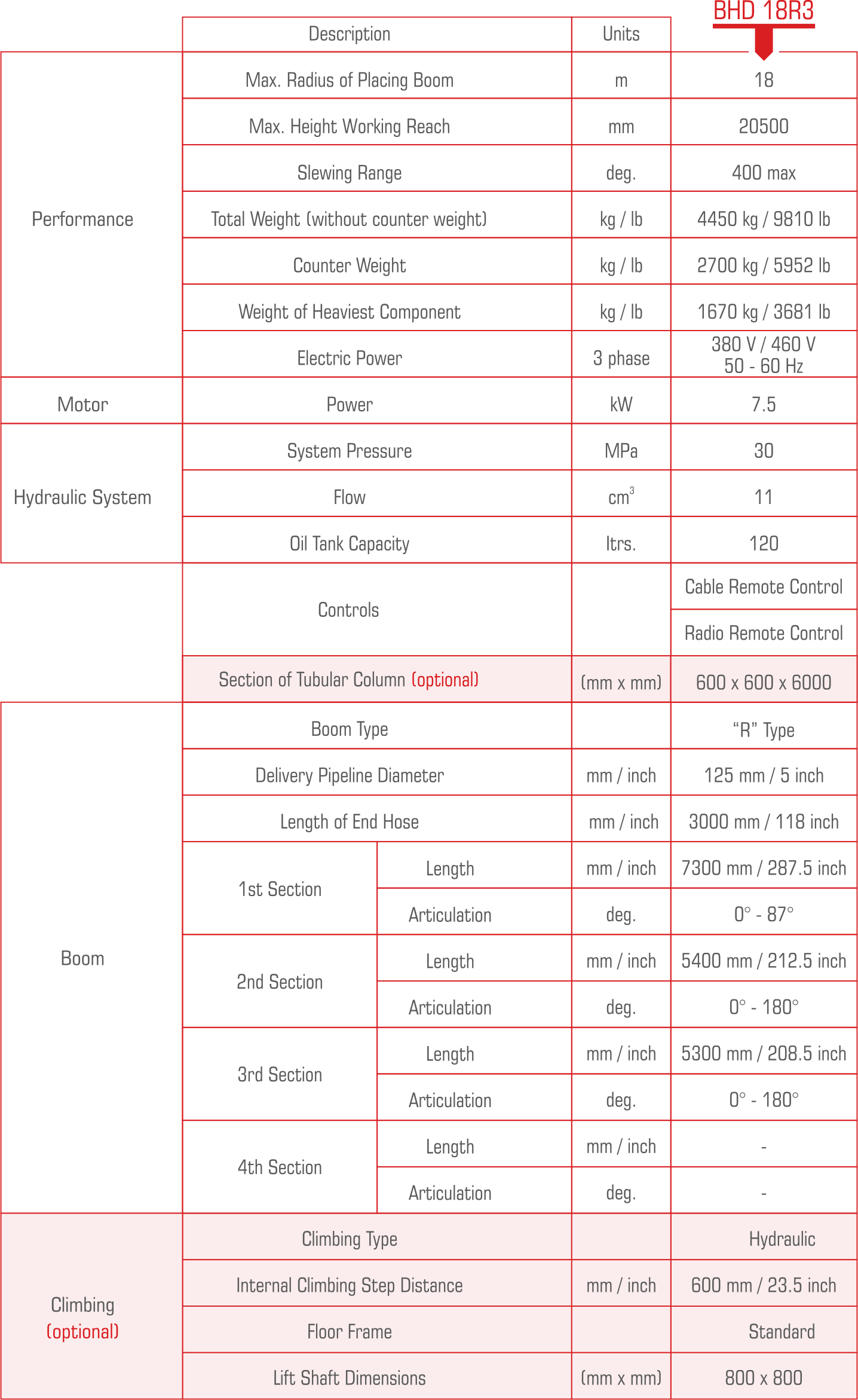

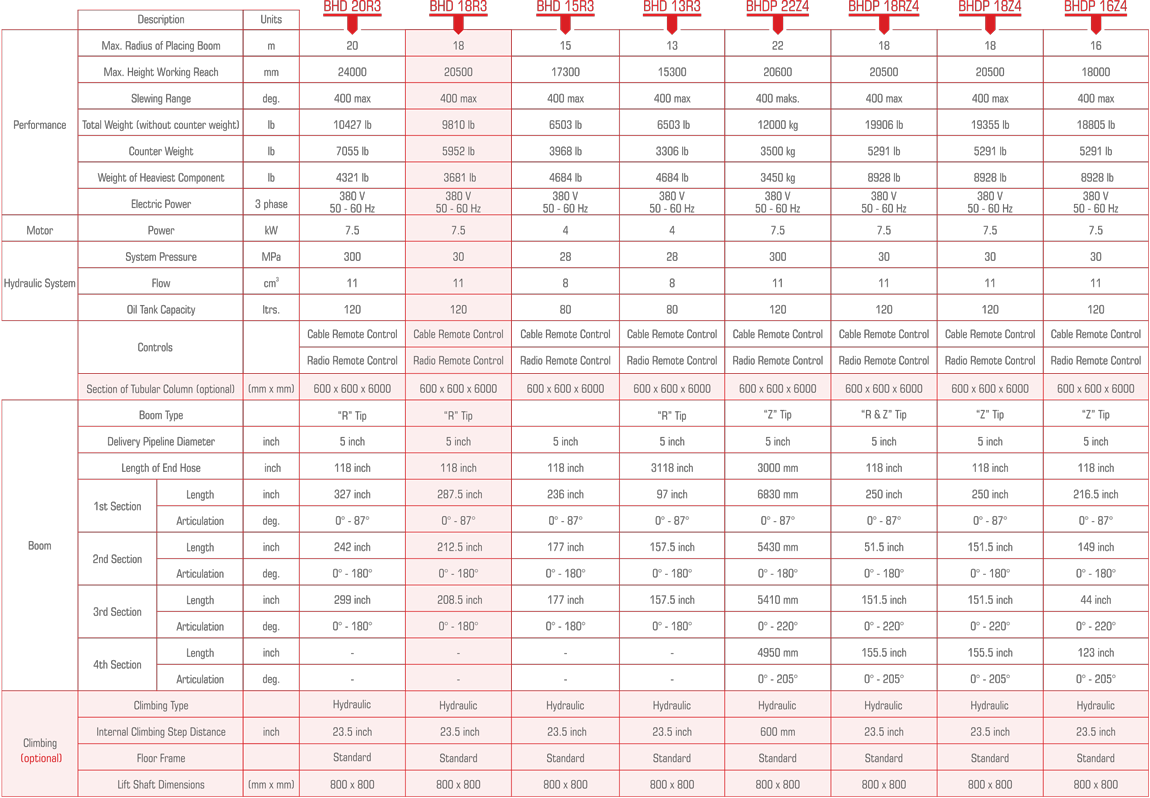

BHD-18R3 Technical Information

*The dimensions stated on the page can be changed by the company without additional information!
