•  Maximum safety for the entire construction site.

•  Efficient work pace due to rapid shuttering times.

•  The implementation of low-maintenance standard components can help to minimize service expenses.

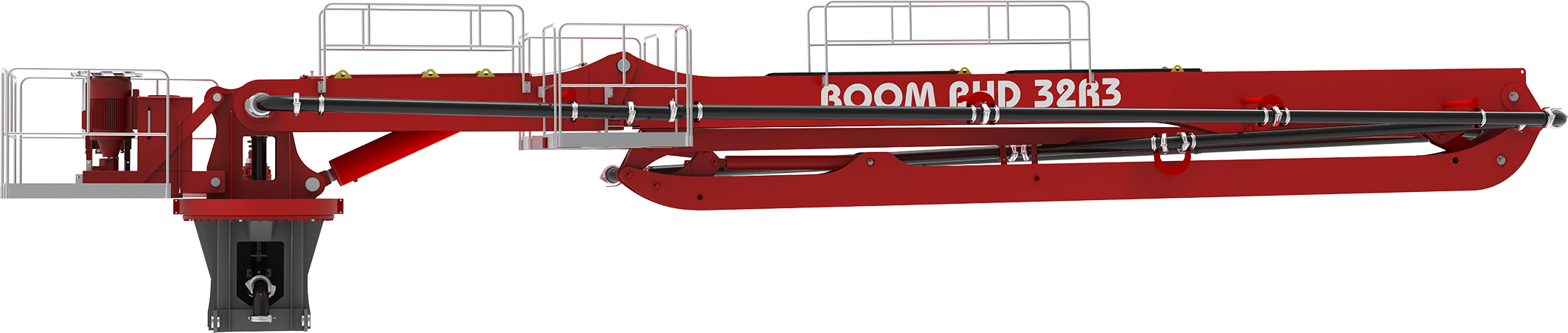

•  By utilizing modular design technology and quick connecting components, BHD 32R3 can be quickly and easily assembled and hoisted.

We are proud to offer a wide range of products and services that are versatile and adaptable to various construction projects.

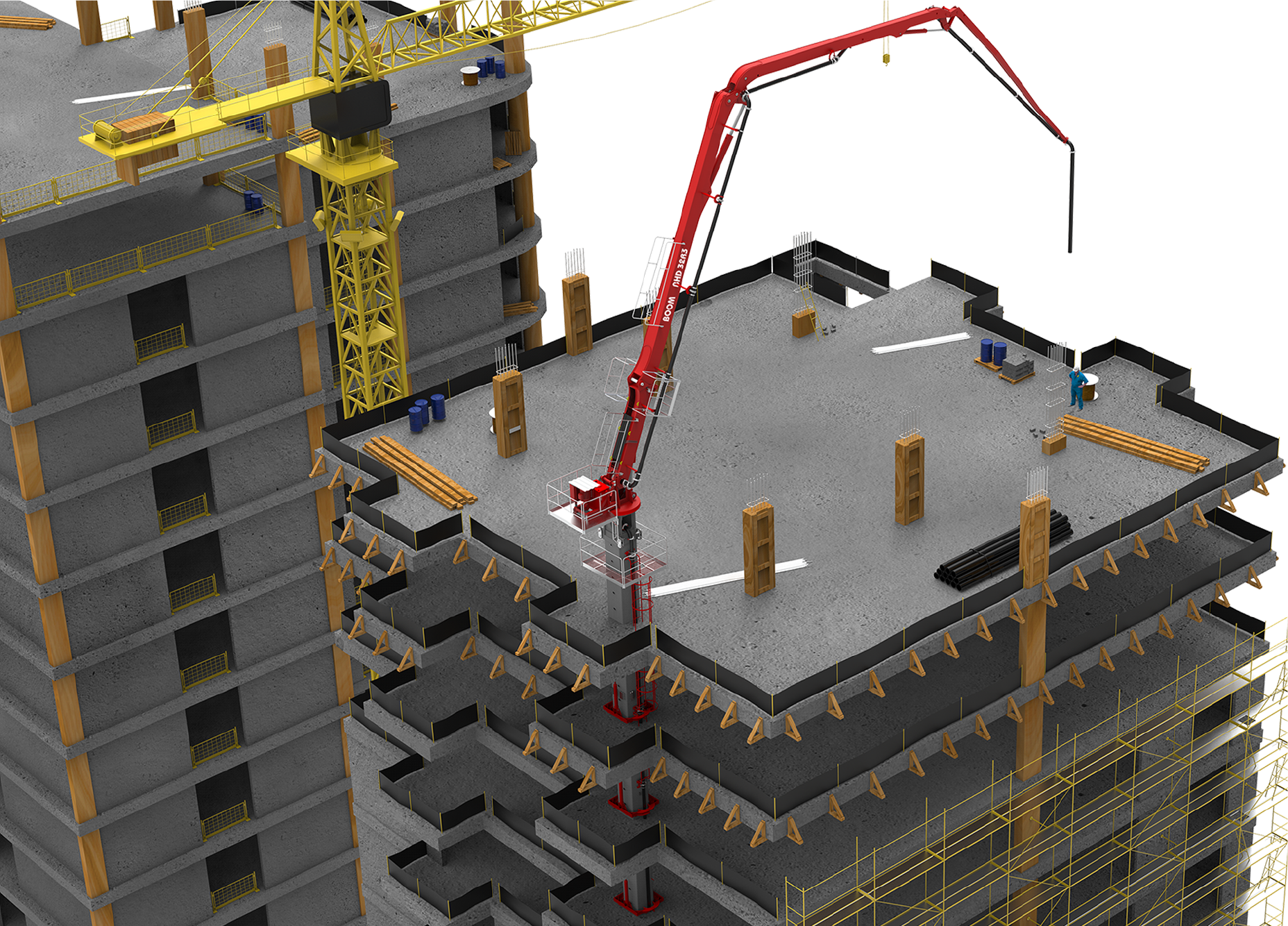

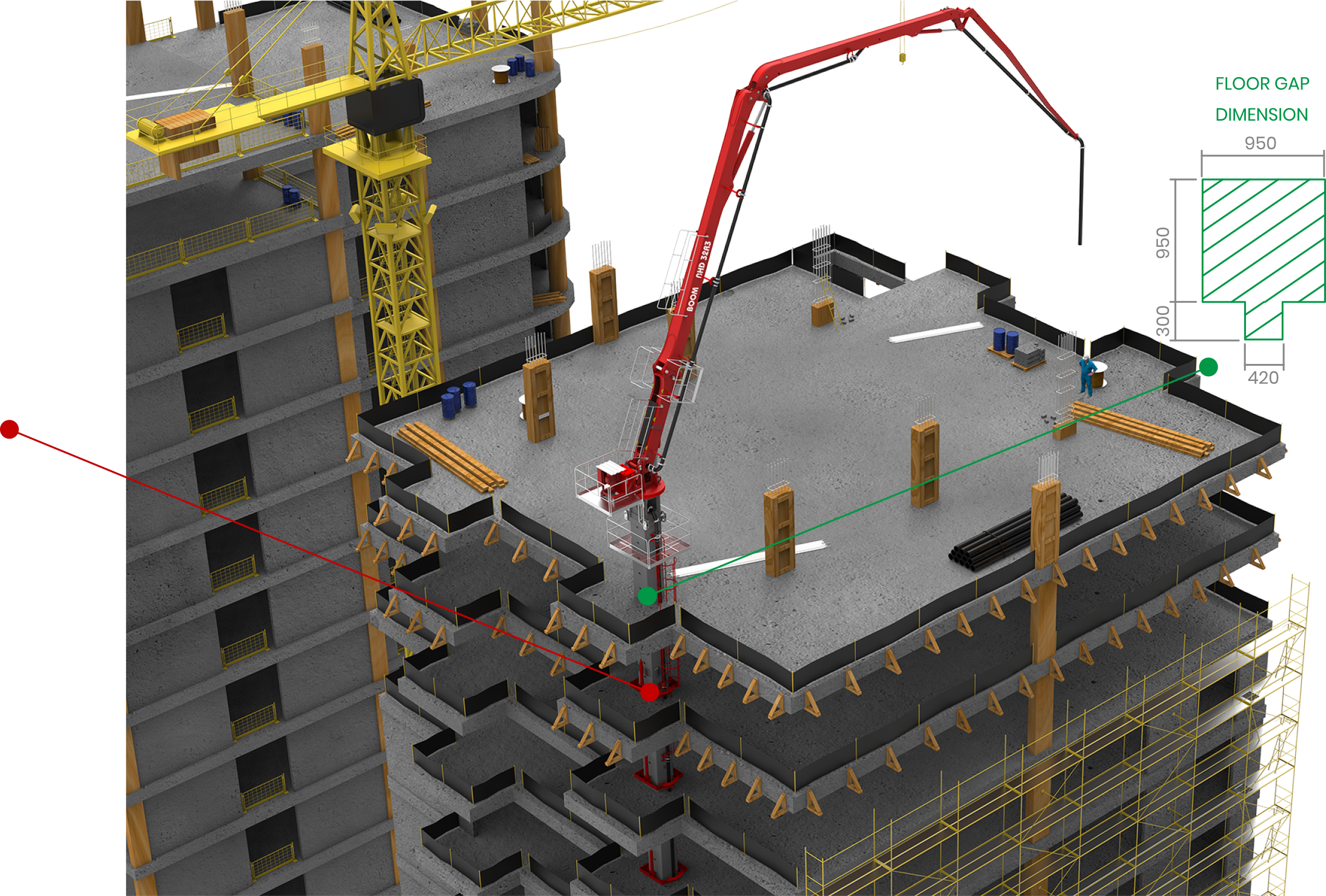

SLAB SUPPORTED Mast support is achieved by securing the floor frames with pins and wedges on three  levels of a slab-supported floor. Maximum radius and range are achievable when BHD 32R3 is installed inside a building. BHD 32R3 requires less labor due to the in dependent systems of the climbing frames  and supports.

Select the mounting option that best aligns with your job site needs. Often, a combination of mounting systems is utilized - begin with a freestanding mast on a ground connection or ballasted ground connection, then transition to a slab-supported configuration using floor frames with a self-climbing mechanism as the structure ascends. Boom Makina Self-Climbing Type Placing Booms can also be easily adapted to lattice towers, concrete walls/structures, barges, or other marine applications, offering versatility for a wide range of construction projects.

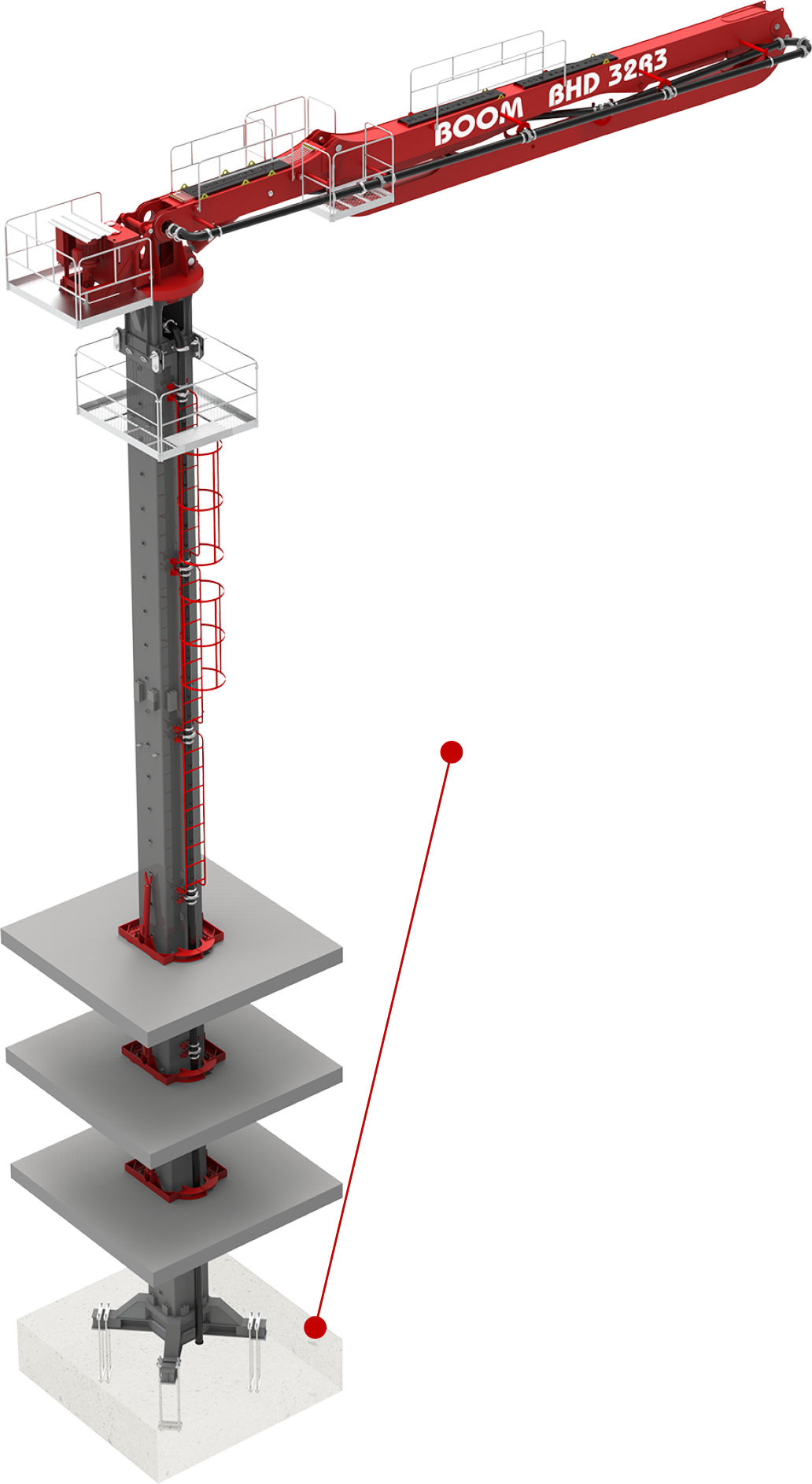

FREE-STANDING

Free-Standing the mast and separate placing boom is accomplished with a free-standing ground connection that can be anchored to a foundation or ballasted frame.

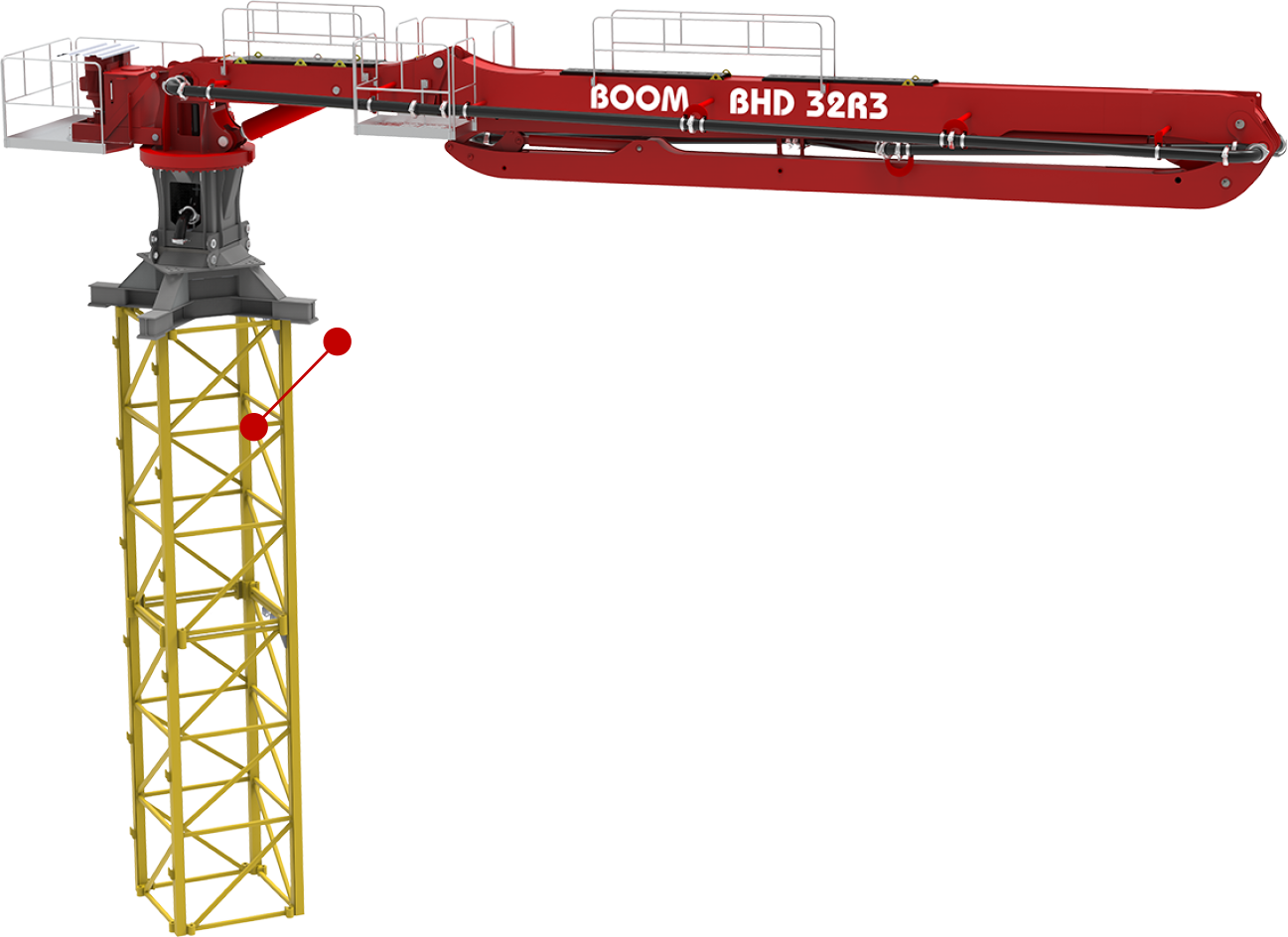

  MOUNTING ON TOWER MAST

Placing booms of this kind are generally set up on foundations located outside of buildings, where a smaller radius is required.



When the tower is of a lower height, it is typically not required to rely on buildings for stability.



Lattice type tower sections have a strongwind load resistance.



The placing boom is capable of utilizing tower sections that are standard for tower cranes.



This system is suitable for a variety of applications, including large-scale foundations, nuclear power plants, high-speed rail beam prefabrication factories, hydroelectric power dams, and more.







Introducing Essential Climbing Type Boom Spare Parts!

Be ready for any situation with our carefully curated selection of spare parts designed specifically for spider-type booms. Swiftly address issues, reduce downtime, and stay cost-effective.

Why choose us?

       Emergency Readiness: Resolve hydraulic or electrical issues efficiently, saving time and money.

       Self-Sufficiency: Empower your team to handle repairs independently, minimizing downtime.

       Cost-Effective: Avoid last-minute orders and inflated prices with our affordable spare parts.

       Peace of Mind: Gain confidence and ensure operational productivity.

Equip your team with essential spare parts for spider-type booms. Stay prepared and efficient!

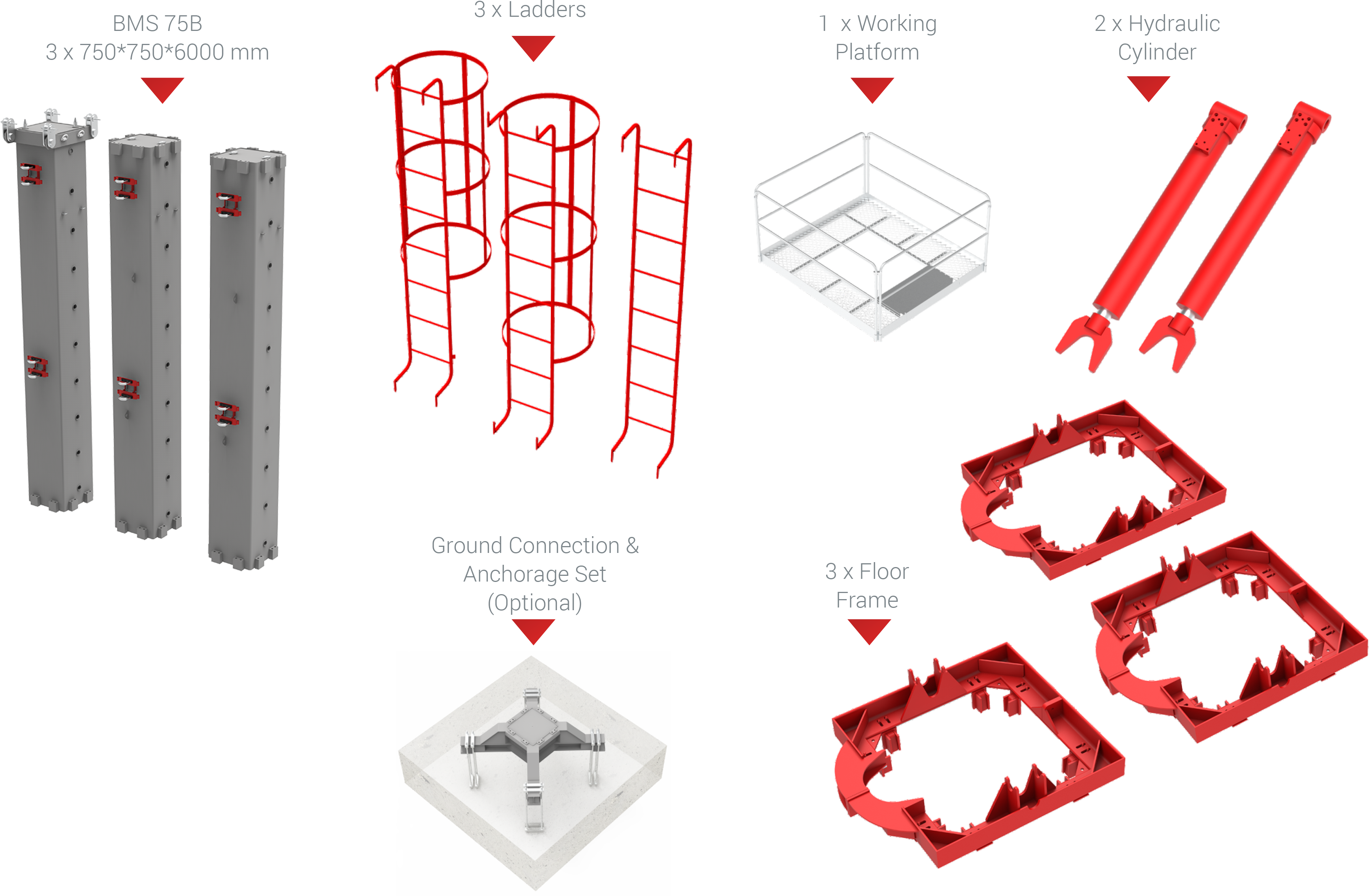

Recommended Spare Parts

Origin Of Product Used

Our organization collaborates with corporations that possess deep-rooted expertise and are recognized as top-tier entities within their respective industries. We hold the belief that their unwavering dedication to quality is a vital contributor to the added value of our goods and services.

  Warrant Policy

Boom Makina guarantees that all its products are free from any manufacturing defect and sub-standard workmanship.

Whereas in case any manufacturing defect or non-performance of the machine is reported, BM assures that it would take all possible steps to correct the problem immediately by repairing or by replacing the defective part free of cost.

The assurance of a warranty is valid for a period of 24 months from the date of commissioning of the machine.

Claims for warranty will not be applicable for delivery line equipment, electric or electronic items.

Warranty would cease in case the machine is put to use for purposes other than those for which it has been manufactured.

Damages or failure of parts occurring due to improper maintenance/operation, mishandling, accident, etc, are not covered under warranty.

Any claim for warranty would be considered only based on inspection of the broken down machine by BM's Service Engineer and his subsequent report thereon.

The policy of warranty is applicable only for those machines which are directly purchased from BM, and the warranty would cease in case of resale of the machine to a third party.

Warranty for the items replaced 'under warranty' is valid from the date of fitment till the original warranty period of the machine.

The defective spares which are replaced under warranty become the property of BM, and the same will have to be returned to the BM factory by the customer by normal mode of transport. If not returned, BM would raise an invoice for the items replaced under warranty.

In case of all replacement, freight and costs incurred for clearance of the imported materials, if any, are to be borne by the customer.

BM reserves the right to accept or reject any claim under warranty without citing any reason whatsoever.
